Established 1991

Three decades of engineering precision

Sri Ganapathi Industries began as an iron and steel stockist and grew into a precision fabrication house. Today the same business supplies material, processes it, and manufactures finished machines.

Company overview

One works, three capabilities

Sri Ganapathi Industries is a partnership firm established in 1991 and based at Doddakallasandra on Kanakapura Main Road, Bengaluru. Over 30 years it has built a business that spans the full route from raw material to finished assembly.

As an authorised dealer for TATA Steel and TATA Structura, JSW, JSL / Jindal, Surya Steel Tubes and Metpro, the trade division holds a broad inventory of sections, sheets, pipes and mesh. That stockholding feeds directly into our own job work, which means a fabrication order is rarely waiting on material.

The manufacturing division operates as SGI FABCO, producing Special Purpose Machines, custom high-precision sheet metal and heavy engineering structures — including STP waterlines and structural works. Design refinement runs in-house in SolidWorks and AutoCAD, so manufacturability is settled before cutting begins.

Established: 1991
Legal status: Partnership Firm
Machines: 25

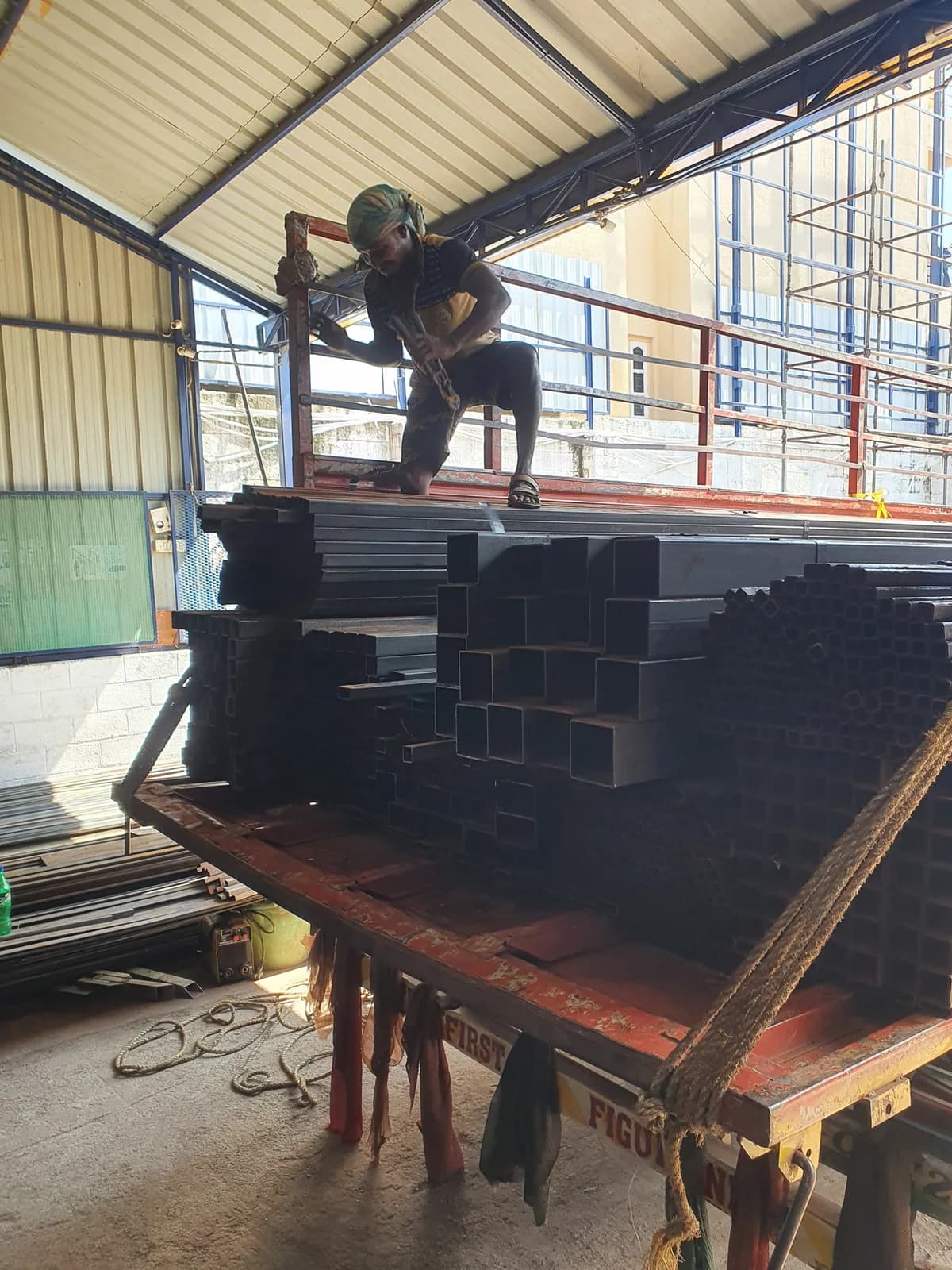

Operator handling square hollow sections during material preparation

PAN: ABVFS6662E
GSTIN: 29ABVFS6662E1ZF
Udyam / MSME: UDYAM-KR-03-0046701

Vision
To position SGI FABCO as a global leader in precision fabrication and SPM engineering — recognised for innovation, customer trust and manufacturing excellence.
Mission
To deliver world-class SPM, high-precision sheet metal and heavy fabrication solutions that consistently exceed customer expectations.
Quality promise
Every product undergoes multi-stage inspection, from dimensional verification through to material integrity analysis, under an ISO integrated management system.

Infrastructure

Plant and machinery

25 machines across 4 process groups and three manufacturing units. Manufacturer, model and capacity below are as recorded in our equipment register and technical capability statement.

Laser & Profile Cutting5 machines

Laser & Profile Cutting — machine capacities
Machine	Capacity
CNC Fibre Laser — Sheet & TubeHan's Laser · GS series	Flat sheet cutting area 3000 × 1500 mm Max tube processing length 3000 mm Max tube diameter 200 mm X-axis stroke 3048 mm Y-axis stroke 2000 mm Z-axis stroke 80 mm Max positioning speed 90 m/min Max acceleration 1.0 G Cooling Dual-temperature water cooling Mild steel 12 mm Stainless steel 5 mm Aluminium 5 mm Copper / Bronze 5 mm
CNC Fibre Laser Machine 1Unit 2 (JV — SE/SGI)	Sheet capacity 2500 × 6000 mm Mild steel 20 mm Stainless steel 12 mm Aluminium 12 mm
CNC Fibre Laser Machine 2Unit 2 (JV — SE/SGI)	Sheet capacity 2500 × 4000 mm Mild steel 16 mm Stainless steel 10 mm Aluminium 8 mm
CNC Fibre Laser Machine 1Unit 3 (JV — SB/SGI)	Sheet capacity 2500 × 6300 mm Tube capacity Ø280 mm Mild steel 40 mm Stainless steel 25 mm Aluminium 16 mm Copper / Bronze 10 mm
CNC Plasma Profile Cutting TableJSR Cutting & Welding Solutions · Hypertherm Powermax125 power source	Working bed area 3000 × 1500 mm Plasma power source Hypertherm Powermax125 Rated output current 30 – 125 A Production pierce capacity 25 mm (mild steel) Edge-start severance capacity 57 mm CNC positioning accuracy 0.1 mm Controller START CNC / FLMC motion control

Shearing & Bending4 machines

Shearing & Bending — machine capacities
Machine	Capacity
CNC Hydraulic Down-Stroking Press BrakeEHP 260	Nominal force 2600 kN (~260 ton) Length of table 3100 mm Distance between uprights 2650 mm Throat depth 400 mm Ram stroke 250 mm Stroke adjustment 150 mm Max opening height (daylight) 500 mm Strokes per minute ≥ 8 – 10 Main motor capacity 18.5 kW Net weight 18,500 kg Outline dimensions (L×W×H) 3650 × 1850 × 2950 mm Mild steel 16 mm Stainless steel 12 mm
Hydraulic NC Press BrakeJiangsu Yangli · WC67Y-125/3200	Nominal force 1250 kN Length of table 3200 mm Distance between uprights 2550 mm Throat depth 320 mm Ram stroke 130 mm Stroke adjustment 100 mm Max opening height 390 mm Strokes per minute ≥ 11 Main motor capacity 7.5 kW Net weight 7200 kg Outline dimensions (L×W×H) 3380 × 1450 × 2450 mm Mild steel 8 mm Stainless steel 6 mm
Heavy-Duty CNC Hydraulic Swing Beam Shearing MachineJiangsu Yangli · QC12K-16×3200	Max cutting thickness 16 mm Max cutting length 3200 mm Main motor power 18.5 kW Stroke frequency ~8 strokes/min (dependent on material width) Backgauge range 10 – 800 mm travel Fixed shearing angle 2.0° – 2.5° Approximate weight ~14,000 kg Physical footprint ~3800 × 2100 × 2200 mm Stainless steel 12 mm
Hydraulic Swing Beam Shearing MachineJiangsu Yangli · QC12Y-6×2500	Plate capacity (T × W) 6 × 2500 mm Shear angle 1°30′ Strokes per minute ≥ 24 Back gauge adjustment 20 – 600 mm Throat depth 145 mm Main motor power 11 kW Net weight 4685 kg Outline size (L×W×H) 3150 × 1500 × 1600 mm

Rolling & Forming6 machines

Rolling & Forming — machine capacities
Machine	Capacity
3-Roll Asymmetric Plate Rolling MachineAk Bend (Akyapak) · ASM-S 190-20/6 MUUJ	Working length 2000 mm Pre-bending capacity 6 mm Max bending / rolling capacity 8 mm Top roll diameter Ø190 mm Min bending diameter 285 mm (1.5 × top roll Ø) Drive configuration Asymmetric 3-roll (initial pinch) Main motor capacity 4 kW Power supply 415 V / 3-phase / 50 Hz Net weight 3600 kg Outline dimensions (L×W×H) 3660 × 1420 × 1250 mm Cone rolling — max thickness 6 mm
C-Frame Mechanical Power Press×2RCP-50T	Nominal capacity 50 ton (~500 kN) Stroke length 102 mm Stroke adjustment 40 – 102 mm Crankshaft diameter Ø120 mm Bed / bolster plate 700 × 400 mm Distance bed to ram (max daylight) 450 mm Hole in ram Ø75 mm Hole in bed Ø150 mm Flywheel diameter Ø800 mm Main motor capacity 15 HP Approximate weight 3850 kg Overall dimensions (L×W×H) 1600 × 1400 × 2200 mm
Hydraulic CNC Pipe Bending Machine	Axis 3 & 5 axis Pipe OD Ø6 – 65 mm Pipe thickness 1 – 5 mm
Pipe & Section Bending Machine 1	Pipe OD Ø12 – 60 mm Square pipe 12 – 50 mm Pipe thickness 1.5 – 4 mm
Pipe & Section Bending Machine 2	Pipe OD Ø50 – 200 mm Square pipe 50 – 150 mm Pipe thickness 3 – 8 mm
GEKA Hydraulic IronworkerGEKA	Punching station (D × T) Ø28 × 13 mm Plate shearing (W × T) 300 × 13 mm Round bar cutting Ø30 mm Square bar cutting 30 mm

Welding & Machining6 machines

Welding & Machining — machine capacities
Machine	Capacity
TIG (GTAW) Welding Power Source×2Ador Fontech Limited	Rated output current 10 – 200 A Input power supply 230 V / 1-phase / 50 Hz Open circuit voltage 60 – 70 V Welding thickness range 0.5 – 6.0 mm
Multi-Functional AC/DC TIG (GTAW)×2Ador Fontech Limited · Tornado TIG-315	Output current range 20 – 315 A Duty cycle rating 100% @ 315 A Input power supply 415 V / 3-phase / 50 Hz Open circuit voltage 66 V
MIG Welding Power Source×2Toshweld · MIG 400 IJ (Moulder IGBT Series)	Output current range 50 – 400 A Input power supply 415 V / 3-phase / 50–60 Hz Rated input power capacity 14 kVA Output voltage adjustment 16.5 – 35.5 V Wire feeding speed 3.0 – 24 m/min Compatible wire diameters 0.8 / 1.0 / 1.2 mm
Laser Welding	Power 2 kW Stainless steel 6 mm Mild steel 8 mm Aluminium 5 mm
Industrial Stationary Resistance Spot WelderJermex	Rated power capacity 8 kVA Input power supply 440 V / 2-phase / 50 Hz Secondary open-circuit voltage 3.5 V AC
Vertical Turret Ram Type Milling MachineM1TR Grade	Table work surface 1270 × 254 mm T-slot configuration 3 slots × 16 mm Longitudinal traverse (X-axis) 860 mm Cross traverse (Y-axis) 400 mm Vertical travel (Z-axis knee) 405 mm Spindle nose to table surface 70 – 470 mm

Quality commitment

Certified, and audited to stay that way.

Our operations run under an ISO integrated management system covering quality, environment and occupational health and safety — each certified by Royal Assessments Pvt. Ltd. and subject to annual surveillance audit.

ISO 9001:2015
Quality Management Systems
Certificate
E20260244896
Valid until
24 Feb 2029
Download PDF
ISO 14001:2015
Environmental Management Systems
Certificate
E20260244897
Valid until
24 Feb 2029
Download PDF
ISO 45001:2018
Occupational Health & Safety Management Systems
Certificate
E20260244898
Valid until
24 Feb 2029
Download PDF

Trade
Steel distribution
Service
Cutting, bending, laser, welding, punching, rolling
Manufacture
SPM & custom high-precision fabrication

Send us your drawing.

Share a drawing, a sample or a description of the part. We will come back with manufacturability feedback and a quotation.
